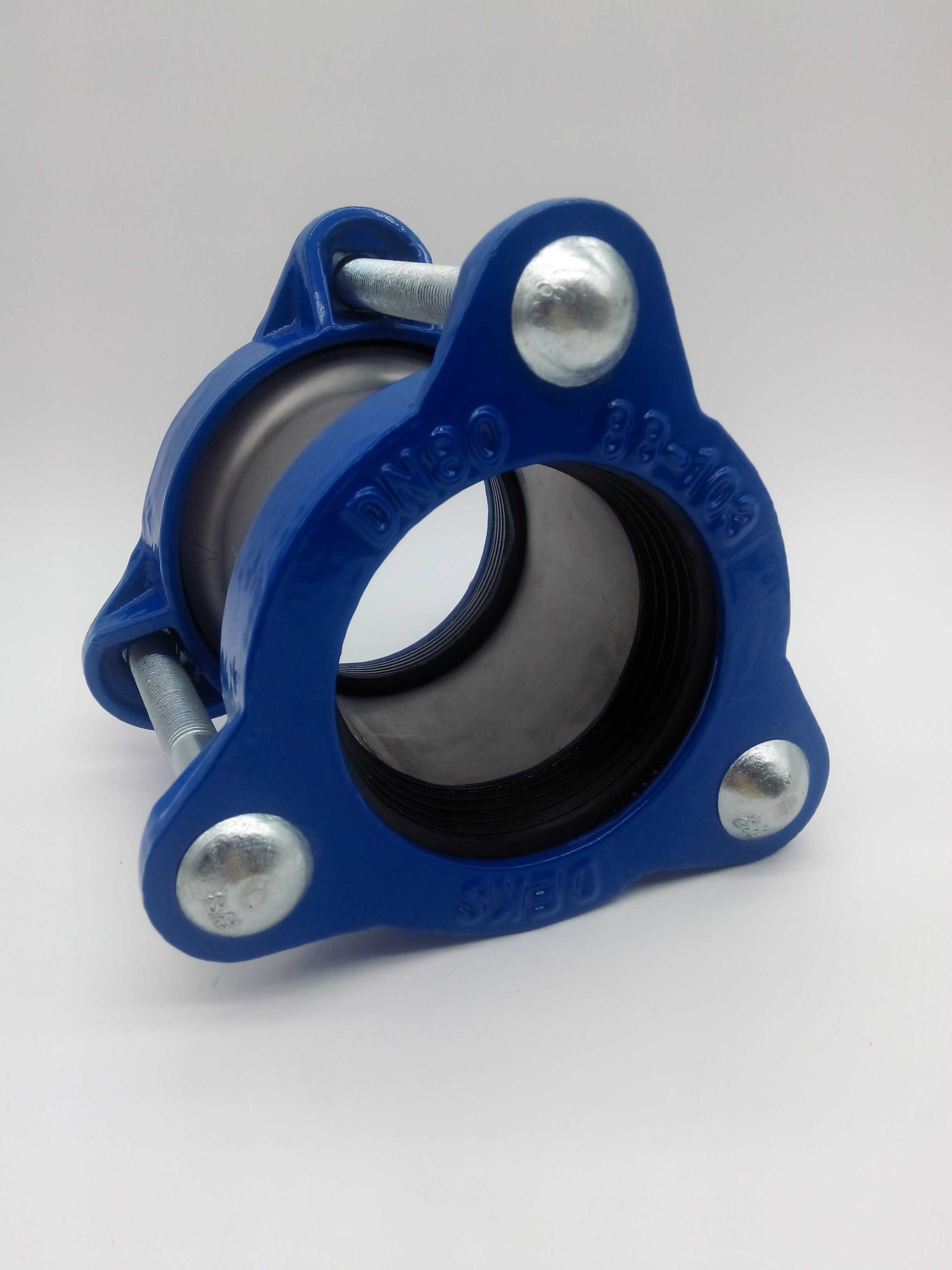

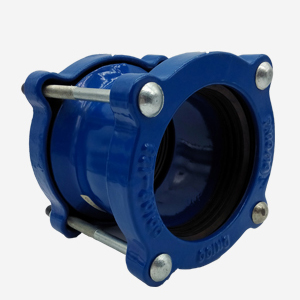

ZFJ Ductile Iron Flexible Pipe Coupling

Zhuhong ZFJ series has an excellent advantage on its wide range of application; It can connect two pipes with a 24mmO.D.difference.

Zhuhong ZFJ series has an excellent advantage on its wide range of application; It can connect two pipes with a 24mmO.D.difference.

The SS barrel and DI end cap of ZFJ do well in corrosion prevention and stretch resistance, it can fit all the load density no matter in the installation or in the use.

ZFJ series offer safe and quick installation, no need of disassembled any part. Suit for irregular and deformation pipes (with a deviation of 3°)，it works well even if the pipe is swelled , shrink or moved.

The coating of end cap compliance with the standard NSF61,durable ,resistant to corrosion, wide applicable temperature range and less abrasion.

More economic than mechanical splice .

Good corrosion resistance can be compared with DI pipe .

Save space .

Flexible .Suit for nearly all the DI, asbestos cement and other kinds of pipes in rated sizes.
