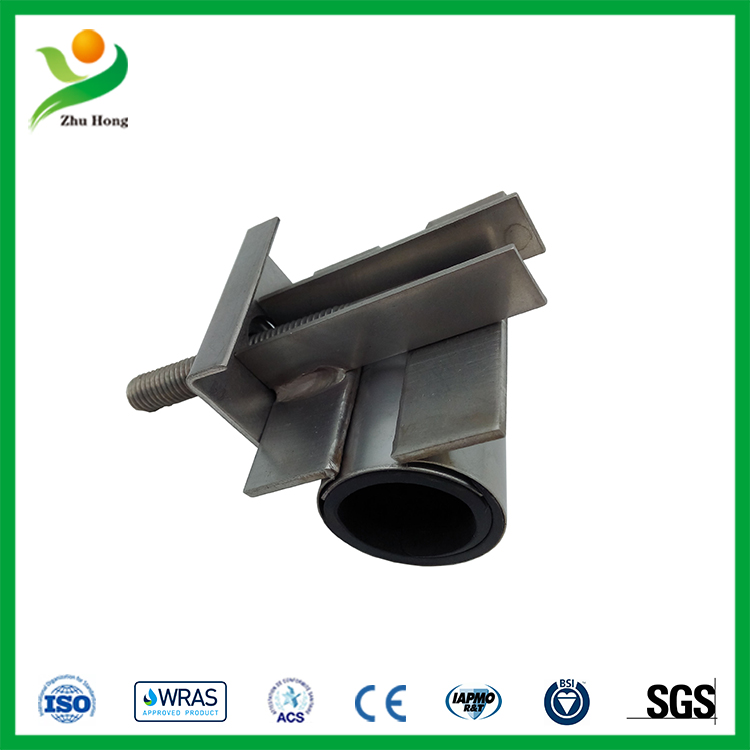

SS-F Stainless Steel Full-Circle Pipe Repair Clamp

SS-H Stainless Steel Semi-Circle Pipe Repair Clamp Mini-type is applied on quick repairing of the small leakage on oil/gas /water supply or drain pipe .It can be used under pressure ,has advantages of handiness ,safe, small volume ,easy to use and fire-free.

SS-F Stainless Steel Full-Circle Pipe Repair Clamp

Mini-type is applied on quick repairing of the small leakage on oil/gas /water supply or drain pipe .It can be used under pressure ,has advantages of handiness ,safe, small volume ,easy to use and fire-free.

Pipe O.D.Range	Working pressure	Length	Bolts
Min-Max	PN	W	Specifications	Length	Torque
mm	bar	mm	M	L	Nm
21-25	16	75/150/300	10	90	80
26-30	16	75/150/300	10	90	80
29-33	16	75/150/300	10	90	80
33-37	16	75/150/300	10	90	80
42-45	16	75/150/300	10	90	80
44-48	16	75/150/300	10	90	80
48-51	16	75/150/300	10	90	80
50-54	16	75/150/300	10	90	80
55-60	16	75/150/300	10	90	80
60-64	16	75/150/300	10	90	80
65-69	16	75/150/300	10	90	80

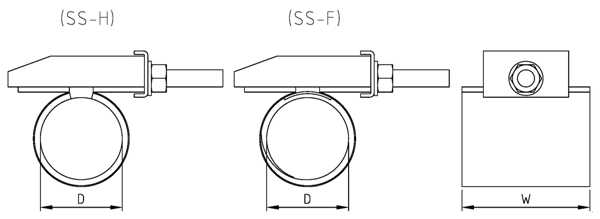

Repair clamp coupling structure chart
