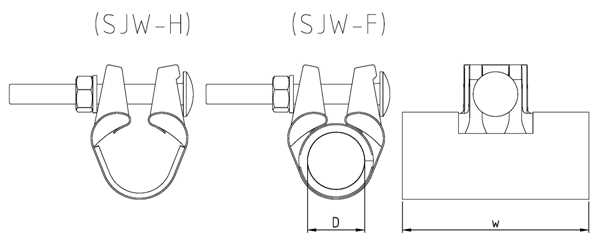

SJW-H SS Semi-Circle Mini Type Pipe Repair Clamp

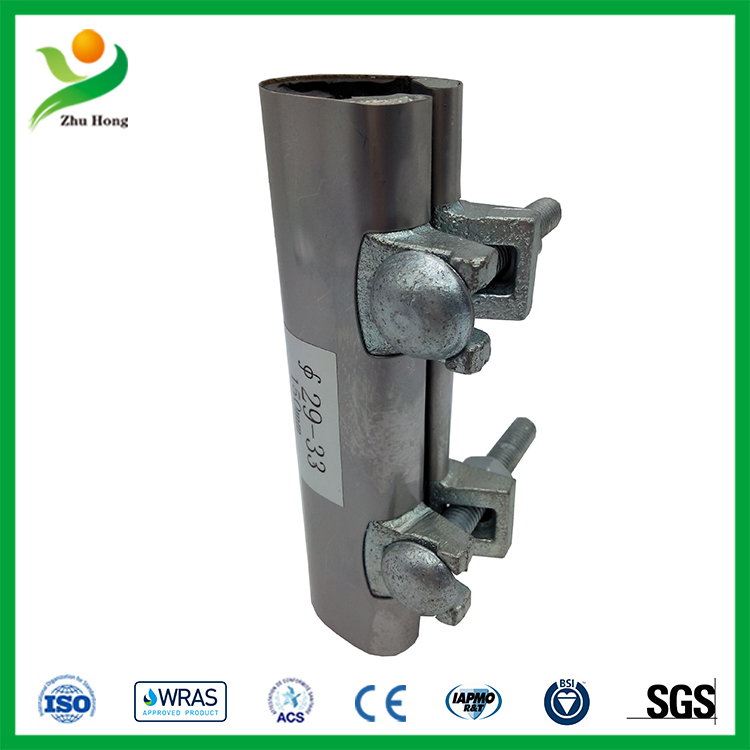

SJW-F SS Full-Circle Pipe Repair Clamp SJW series is applied on quick repairing of the small leakage on oil/gas /water supply or drain pipe which has advantages of handiness ,small volume ,easy to use ,safe and fire-free ,and also can be used under pressure .

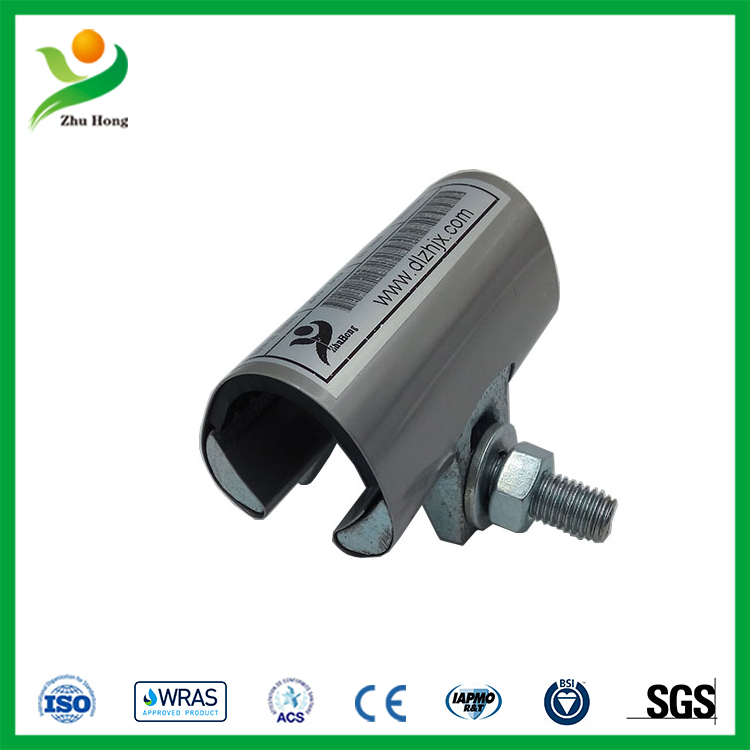

SJW-H SS Semi-Circle Mini Type Pipe Repair Clamp

SJW series is applied on quick repairing of the small leakage on oil/gas /water supply or drain pipe which has advantages of handiness ,small volume ,easy to use ,safe and fire-free ,and also  can be used under pressure .

Ductile Iron Repair clamp coupling Technical Parameters

Pipe O.D.Range	Working pressure	Length	Bolts
Min-Max	PN	W	Specifications	Length	Torque
mm	bar	mm	M	L	Nm
21-25	16	75/150/300	10	75	50
26-30	16	75/150/300	10	75	50
29-33	16	75/150/300	10	75	50
33-37	16	75/150/300	10	75	50
42-45	16	75/150/300	10	75	50
44-48	16	75/150/300	10	75	50
48-51	16	75/150/300	10	75	50
50-54	16	75/150/300	10	75	50
55-60	16	75/150/300	10	75	50
60-64	16	75/150/300	10	75	50
65-69	16	75/150/300	10	75	50
69-73	16	75/150/300	10	100	50
71-76	16	75/150/300	10	100	50
78-82	16	75/150/300	10	100	50
82-87	16	75/150/300	10	100	50
87-93	16	75/150/300	10	100	50
94-100	16	75/150/300	10	100	50
99-104	16	75/150/300	10	100	50
105-111	16	75/150/300	10	100	50
112-117	16	75/150/300	10	100	50
120-126	16	75/150/300	10	100	50
126-131	16	75/150/300	10	100	50
