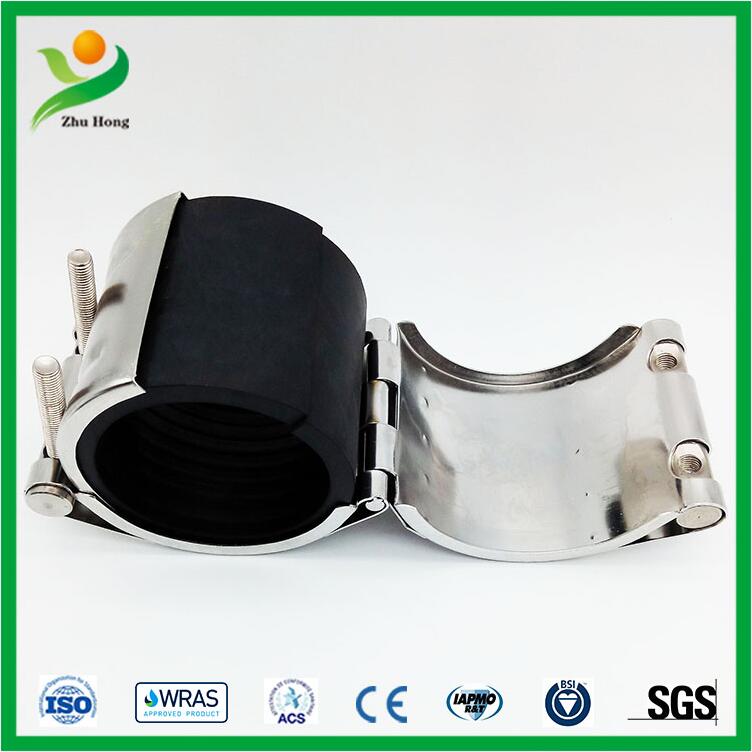

RCH Folding Type Pipe Repair Clamp

RCH folding series is widely on quick repairing of pipe leaks which can seal under pressure and no need of changing pipes .Help a lot on repairing pin holes and breaks caused by aging or rusting .Have advantages of safe ,convenient and efficiency .

RCH Folding Type Pipe Repair Clamp

RCH folding series is widely on quick repairing of pipe leaks which can seal under pressure and no need of changing pipes .Help a lot on repairing pin holes and breaks caused by aging or rusting .Have advantages of safe ,convenient and efficiency .

Pipe O.D.	O.D.Range	Working  Pressure	Size					Bolt	Bolt Torque
OD	ODmin— ODmax	WP	Cmax	L1	L2	D	H
						clamped
(mm)	(mm)	（bar)	(mm)	(mm)	(mm)	approx(mm)	approx(mm)	M	Nm
18	17-19	32	5	57	—	35	55	6	10
21.7	21-23	32	5	57	—	45	65	6	10
25	24.5-25.5	32	5	57	—	50	70	6	10
27.2	26-28	32	5	57	—	50	70	6	10
32	31.5-32.5	32	5	57	—	55	75	6	10
34	33-35	32	5	57	—	55	75	6	10
40	39.5-41.5	32	5	57	—	55	75	6	10
42	42-44	32	5	57	100	65	85	6	15
44.5	44-45.1	32	5	57	100	65	85	6	15
48.6	47-49	32	5	57	100	70	90	8	15
54	53.3-54.6	32	5	57	100	70	90	8	30
57	56.3-57.7	32	5	57	100	80	100	8	30
60.3	59-62	32	5	80	139	85	105	8	30
63	62.2-63.9	32	5	80	139	85	105	8	30
76.1	75-78	28	5	80	139	100	120	8	30
79.9	78.8-80.8	28	5	80	139	100	120	8	30
88.9	88-92	28	5	107	203	110	130	10	50
108	106-110	28	5	107	203	130	150	10	50
110	108.9-111.2	28	5	107	203	130	150	10	50
114.3	112-116	28	5	107	203	135	155	10	50
118	116.6-119.2	28	5	107	203	140	160	10	50
125	123.6-126.5	28	5	107	203	150	185	10	50
133	131.5-134.4	28	5	107	203	160	190	10	50
140	137-143	28	5	116	203	165	195	12	80
159	157-161	24	5	116	203	185	215	12	80
165.2	163.3-166.7	24	5	116	203	190	215	12	80
168	166-170	24	5	116	203	195	225	12	80
170	168.2-171.9	24	5	116	203	195	225	12	80
200	198.2-201.5	16	10	155	255	240	270	14	100
219	217-221	16	10	155	255	250	280	14	100
250	250-254	16	10	155	255	285	315	14	100
273	271-275	16	10	155	255	305	335	14	100
315	313-317	14	10	155	255	340	375	14	100
325	323-327	14	10	155	255	355	385	14	100
355.6	354-358	14	10	155	255	385	420	14	100
377	375-379	14	10	155	255	410	440	14	100
