HRC High Pressure Repair Clamp

HRC High Pressure Repair Clamp High pressure pipe repair clamp is designed for the repair of high pressure pipe .The standard working pressure is 64 bar while actual working pressure could reach 100 bar or 140bar . It also can be made according to other special requirements .All the HRC clamps are tested under 1.5 times than design working pressure .The standard material of sealing rubber ring is EPDM and NBR. Other like fluorine rubber ,and silica gel are also available .

HRC High Pressure Repair Clamp



High pressure pipe repair clamp is designed for the repair of high pressure pipe .The standard working pressure is 64 bar while actual working pressure could reach 100 bar or 140bar . It also can be made according to other special requirements .All the HRC clamps are tested under 1.5 times than design working pressure .The standard material of sealing rubber ring is EPDM and NBR. Other like fluorine rubber ,and silica gel are also available .

Pipe Size Inside Size Inside Length total length Working Pressure PN
(mm) (mm) (mm) (mm) (bar)
38 73 139 228 140
50 79 146 228 140
63 85 133 215 140
76 101 133 215 140
101 127 133 215 140
152 180 133 228 140
203 231 133 254 140
254 285 139 266 140
304 336 139 266 100
355 368 203 355 100
406 419 203 355 100
457 469 203 355 100
508 520 203 355 64
558 571 203 355 64
609 622 203 355 64
660 673 203 355 64
711 723 203 355 64
762 774 203 355 64
812 825 203 355 64
863 876 203 355 64
914 927 203 361 64
965 977 203 361 64
1016 1028 203 361 64
1066 1079 203 403 64
1219 1231 203 406 64

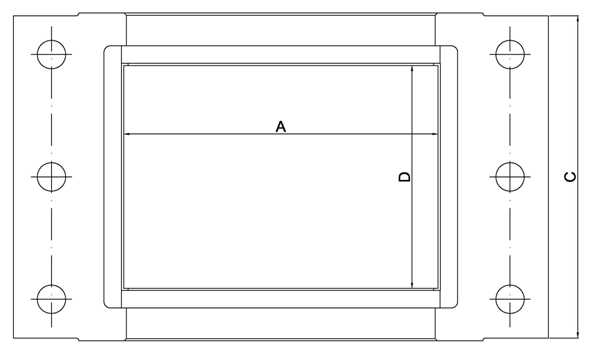

High Pressure Repair clamp coupling structure chart

High Pressure Repair clamp coupling structure chart
