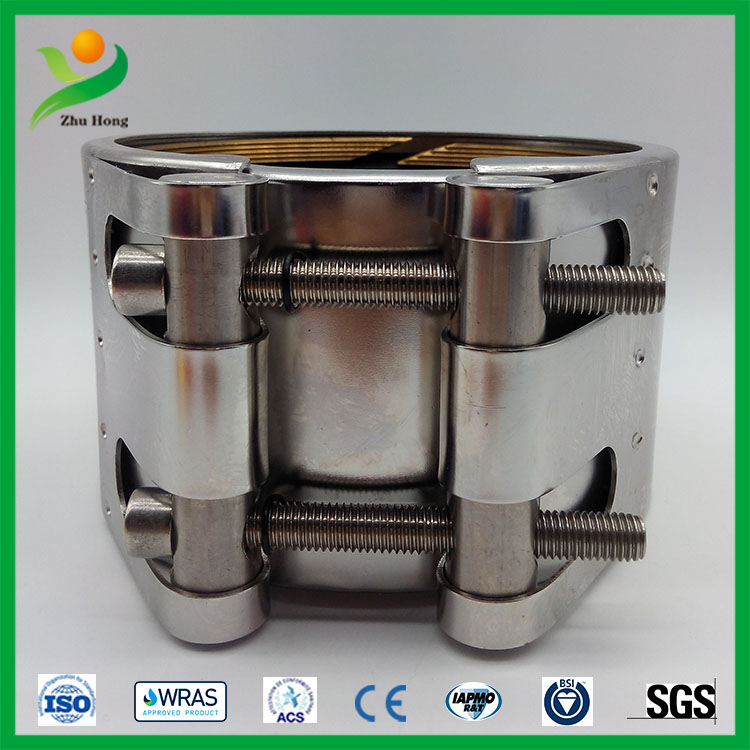

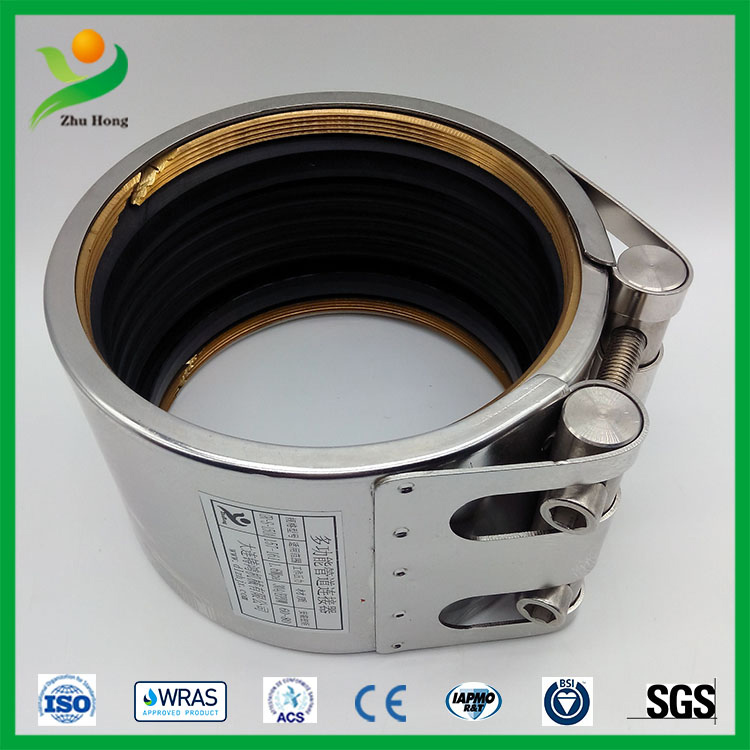

GF Non-Metal Pipe Coupling

Applied to all kinds of rigid plastic pipes. Allowable angular deflection and restraint. Applied to connections of gas, water supply and industrial production pipelines. Workable both for thin or thick wall pipes.

GF Non-Metal Pipe Coupling



Applied to all kinds of rigid plastic pipes. Allowable angular deflection and restraint. Applied to connections of  gas, water supply and industrial production pipelines. Workable both for thin or thick wall pipes.

Pipe O.D.	O.D.Range	Industry	Dimensions				Screws	Screw Torque
OD	ODmin— ODmax	WP	Cmax	L	D	H
					clamped
(mm)	(mm)	（bar)	(mm)	(mm)	approx(mm)	approx(mm)	M	Nm
63	62-64	20	10	75	85	105	8	25
75	74-76	20	25	105	100	120	8	30
90	89--91	20	25	105	110	130	8	40
110	108-111	20	25	120	130	150	10	40
125	123-126	20	25	120	145	165	10	50
140	138-142	20	30	120	160	180	10	50
160	158-162	20	30	120	180	200	10	60
180	178-182	16	35	152	210	240	12	60
200	198-203	16	35	152	230	260	12	60
225	222-227	16	35	152	255	285	12	60
250	247-253	16	35	152	280	310	12	60
280	277-283	16	35	152	310	345	12	60
315	311-317	16	35	152	345	375	12	60
355	351-357	16	35	152	385	415	12	60
400	396-402	12	35	152	430	460	12	60
450	447-453	12	35	152	480	510	12	60
500	497-503	12	35	152	530	560	12	70
560	557-563	10	35	152	590	620	12	70
630	627-633	10	35	152	660	690	16	70
800	796-804	10	35	152	830	860	16	80
