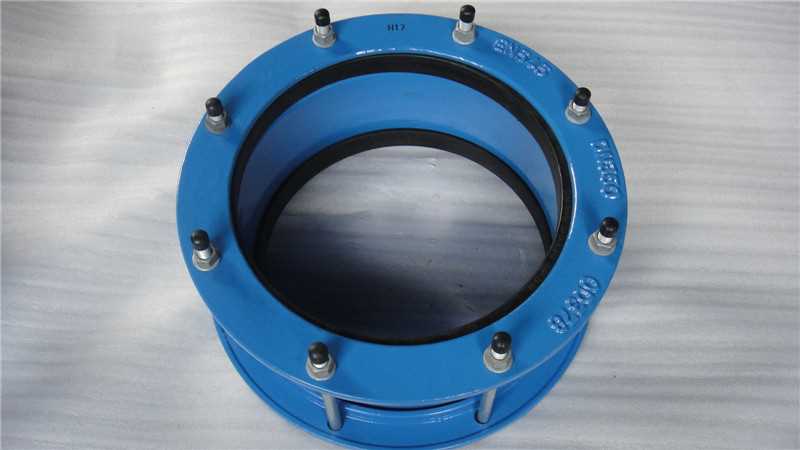

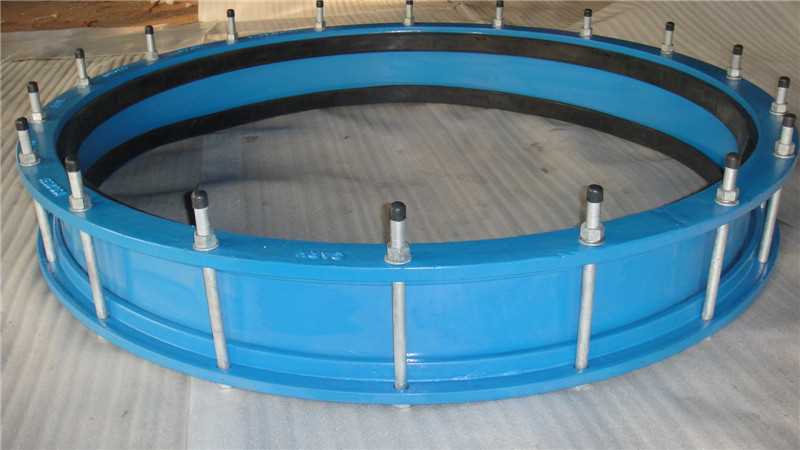

Ductile iron Gibault Pipe Coupling

Ductile iron coupling for ductile iron pipe is designed only for ductile iron pipe complying with BS EN545 or ISO2531, it is cheaper than universal flange adaptor & coupling. It provides a quick, leak free and reliable method of joining plain ended pipes for the conveyance of water and sewage

Ductile iron metal expansion joint is applicable for pipe through the wall of the vibration or structure requirement is tight waterproof, general manufacturing enterprise produce the waterproof casing according to the construction science research institute of design S312, 02 S404 standard atlases. In case the wall where the flexible metal waterproofing cannula needs to pass through is not concrete, it should be switched to concrete walls, and the casing must be a set in the wall; Flexible waterproofing cannula is widely used in construction, chemical, steel, water, sewage treatment etc.

Generally, casing should be used when doing the pool, it is the channel pipeline leads to the pool. But ordinary casing is difficult to seal, thus there will be leakage between casing and pipeline, between the casing and the wall is easy to leak. Waterproof cannula only solves the leak between the casing and wall, also can solve between casing and tube seal.



SIZE	RANGE	A	D	L	Qty
DN40	48-60	165	100	M12*180	2
DN50	59-72	180	95	M12*180	2
DN65	72-85	180	95	M12*180	3
DN80	88-103	190	95	M12*180	4
DN100	93-117	200	95	M12*180	4
DN100	105-122	214	95	M12*180	4
DN100	108-128	214	95	M12*180	4
DN125	125-140	250	100	M12*180	4
DN125	132-154	250	100	M12*180	4
DN125	138-153	250	95	M12*180	4
DN150	155-175	278	105	M12*200	4
DN150	159-182	278	105	M12*200	4
DN175	192-210	300	130	M12*200	4
DN200	218-235	324	130	M12*220	4
DN225	230-247	357	130	M12*230	6
DN225	250-267	406	130	M12*230	6
DN250	265-280	406	130	M12*230	6
DN250	272-289	406	130	M12*230	6
DN300	315-332	440	130	M12*230	6
DN300	322-339	452	130	M12*230	6
DN300	332-349	463	130	M12*230	6
DN350	351-368	510	165	M16*250	6
DN350	374-391	510	165	M16*250	8
DN350	386-415
DN400	400-429	560	165	M16*250	8
DN400	410-436	560	165	M16*250	8
DN400	417-437	560	165	M16*250	8
DN400	425-442	560	165	M16*250	8
DN450	480-500	630	165	M16*250	8
DN500	500-535	700	165	M16*250	10
DN500	526-546	700	165	M16*250	10
DN500	535-570	700	165	M16*250	10
DN600	600-630	830	165	M16*250	10
DN600	630-650	830	165	M16*250	10



The coupling and flange adaptor will function as mechanical pipe joints for us in pipelines to facilitate the removal of valves and fittings without disturbing the pipelines and accommodate limited ground movement, expansion, contraction and angular misalignment of the pipeline.
