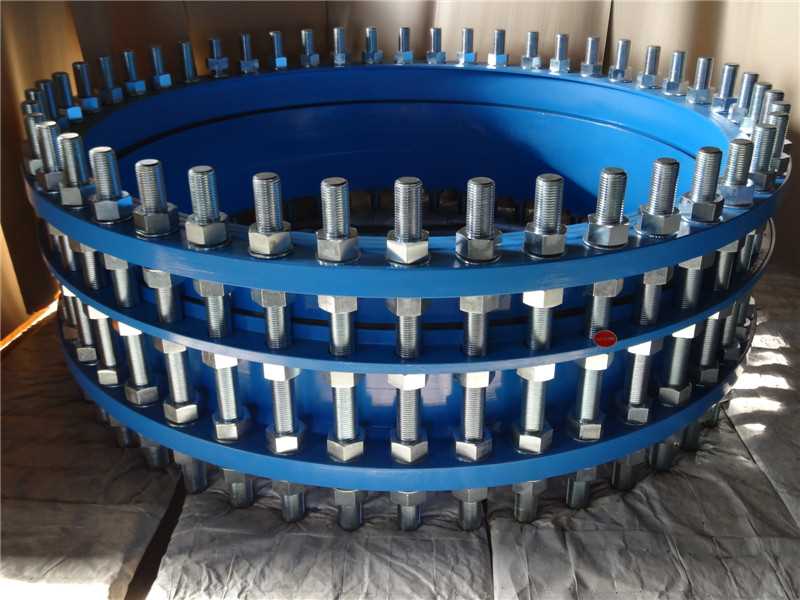

DISMANTLING JOINT

FOR FLANGED VALVES,PUMPS,FLANGED PIPES PIPES DN40-1600 FEARURES: DISMANTLING joint assembly is a double flanged composite fitting featuring a telescopic action between a flanged spigot and a flanged adaptor .The joint is designed to provide longitudinal adjustment in flanged pipe systems. Dismantling joints provide a simple method for the installation and removal of flanged valves, pumps, flows meters, flanged pipes and pipe fittings .Tie rods are provided for final anchoring and location and these and these also double as mating flange jointing bolts, reducing the number of these required.

DISMANTLING JOINT

FOR FLANGED VALVES,PUMPS,FLANGED PIPES

PIPES DN40-1600



FEARURES:

DISMANTLING joint assembly is a double flanged composite fitting featuring a telescopic action between a flanged spigot and a flanged adaptor .The joint is designed to provide longitudinal adjustment in flanged pipe systems. Dismantling joints provide a simple method for the installation and removal of flanged valves, pumps, flows meters, flanged pipes and pipe fittings .Tie rods are provided for final anchoring and location and these and these also double as mating flange jointing bolts, reducing the number of these required.



PN10/25/40 operating pressure.



MATERIAL

BODY:DUCTILE IRON GGG-40

GASKET :EPDM/NBR/SBR

BOLTS&NUTS:CARBON STEEL



FLANGES AND DRILLINGS:ISO7005-2(BS EN1092-2:1997,DIN2501)



SIZE

PN10

PN16

D

n

D2

L1

L2

D

n

D2

L1

L2

DN40

150

4

M16

180

280

150

4

M16

180

280

DN50

165

4

M16

180

280

165

4

M16

180

280

DN65

185

4

M16

180

280

185

4

M16

180

280

DN80

200

8

M16

200

310

200

8

M16

200

310

DN100

220

8

M16

200

310

220

8

M16

200

310

DN125

250

8

M16

200

310

250

8

M16

200

310

DN150

285

8

M20

200

320

285

8

M20

200

320

DN175

315

8

M20

200

340

315

8

M20

220

340

DN200

340

8

M20

220

340

340

8

M20

220

340

DN250

395

12

M20

220

370

405

12

M24

230

370

DN300

445

12

M20

220

390

460

12

M24

250

410

DN350

505

16

M20

230

410

520

16

M24

260

410

DN400

565

16

M24

230

410

580

16

M27

270

430

DN450

615

20

M24

250

430

640

20

M27

270

430

DN500

670

20

M24

260

440

715

20

M30

280

440

DN600

780

20

M27

260

460

840

20

M33

300

480

DN700

895

24

M27

260

480

910

24

M33

300

480

DN800

1015

24

M30

290

520

1025

24

M36

320

520

DN900

1115

28

M30

290

520

1125

28

M36

320

520

DN1000

1230

28

M33

290

560

1255

28

M39

340

560

DN1100

1340

32

M33

300

560

1355

32

M39

340

560

DN1200

1455

32

M36

320

600

1485

32

M45

360

600

DN1300

1575

32

M39

340

600

1585

32

M45

370

610

DN1400

1675

36

M39

360

630

1685

36

M45

380

630

DN1500

1785

36

M39

380

665

1820

36

M52

400

665

DN1600

1915

40

M45

390

700

1930

44

M52

400

700

FOR FLANGED VALVES,PUMPS,FLANGED PIPES
