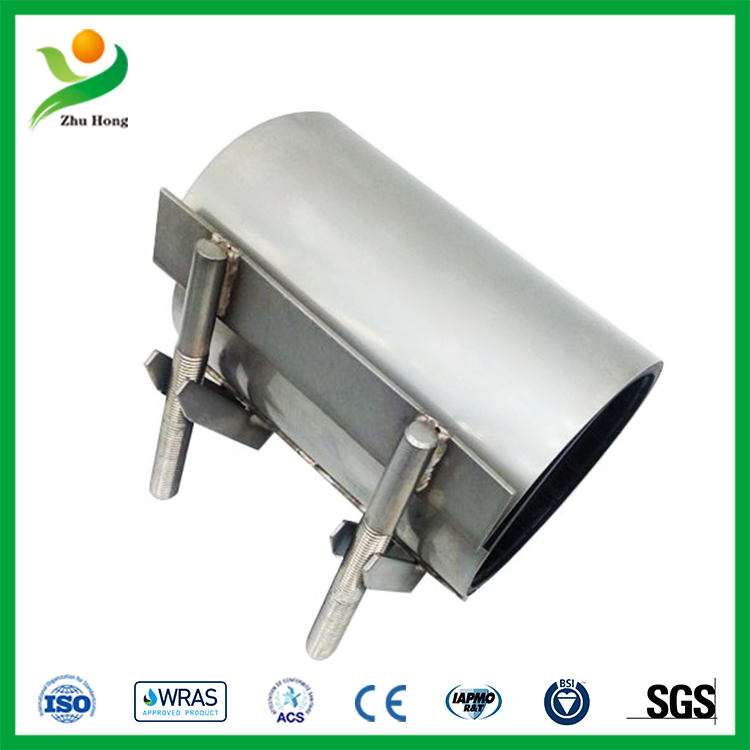

CR-1 Single Band Stainless Steel Band Repair Clamp

CR series is good at repairing pin holes and breaks caused by aging or rusting .which can seal under pressure and no need of changing pipes .Have advantages of safe ,convenient and efficiency ,can be installed without and other tools .It is highly optimized for general use and has few requirements on the elasticity of pipe arc.

CR-1 Single Band Stainless Steel Band Repair Clamp

CR1, CR2, CR3, CR4 for the rapid and permanent repair of pressurised gas and water pipelines. Through the elastic design such large external diameter tolerances can be taken up that clamps for up to four pipe types of one nominal width (e.g. cast iron, steel, PVC or fibre cement pipes are used.

Easy Repair clamps can be used to repair the following pipe types:

• Ductile Iron (DI)
• Cast Iron (CI)
• Steel (St.)
• Asbestos Cement (AC)
• PE coated steel
• PVC*
• GRP*
• PE*



Pipe O.D. Range(mm)	Working  pressure(bar)	Pipe O.D. Range(mm)	Working  pressure(bar)	Pipe O.D. Range(mm)	Working  pressure(bar)	Pipe O.D. Range(mm)	Working  pressure(bar)	Length(mm)
CR-1	PN	CR-2	PN	CR-3	PN	CR-4	PN	W
59-67	16							150-600
65-73	16							150-600
69-76	16							150-600
75-83	16							150-600
86-94	16	88-108	16					150-600
108-118	16	108-128	16					150-2000
113-121	16	113-133	16					150-2000
121-131	16	120-141	16					150-2000
126-136	16	168-188	16					150-2000
132-142	16	174-194	16					150-2000
145-155	16	219-239	16					150-2000
151-161	16	228-249	16					150-2000
159-170	16	238-258	16					150-2000
166-177	16	258-278	16					150-2000
170-180	16	273-293	16					150-2000
174-184	16	282-302	10					150-2000
179-189	16	295-315	10					150-2000
189-199	16	324-344	10					150-2000
218-228	16	335-356	10					150-2000
222-233	16	347-367	10					150-2000
229-239	16	357-376	10					150-2000
236-246	16	365-384	10					150-2000
248-258	16	383-402	10					150-2000
250-260	10	404-423	10					150-2000
252-263	10	421-440	10					150-2000
261-271	10	436-455	10					150-2000
271-281	10	453-472	10					150-2000
280-291	10	469-488	10					150-2000
288-298	10	488-507	10					150-2000
298-309	10	505-525	10					150-2000
300-310	10	526-545	8					150-2000
304-314	10	547-566	8					150-2000
321-331	10	562-581	8	630-660	8			150-2000
333-343	10	582-601	8	670-700	8			150-2000
340-351	10	630-650	8	720-750	8			150-2000
348-358	10	670-690	8	770-800	6			150-2000
356-366	10	720-740	8	820-850	6			150-2000
				870-900	6			150-2000
				920-950	6	920-960	6	150-2000
						1020-1060	6	150-2000
						1070-1110	6	150-2000
						1120-1160	6	150-2000
						1220-1260	6	150-2000



CR series is good at repairing pin holes and breaks caused by aging or rusting .which can seal under pressure and no need of changing pipes .Have advantages of safe ,convenient and efficiency ,can be installed without and other tools .It is highly optimized for general use and has few requirements on the elasticity of pipe arc.

Band Type Repair clamp coupling Technical Parameters

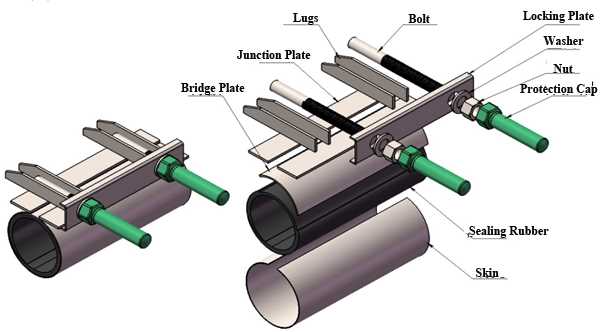

CR-1 Single Band Stainless Steel Band Repair Clamp structure chart
